Hobby RC Servo modules like this can be controlled from KFLOP.

Most Servo Modules require a 1-2ms pulse at 50Hz to command their position.

This is somewhat difficult to generate with normal PWM generators as high Time resolution is required at a slow rate.  KFLOP Hardware PWM generators have a minimum frequency of 254Hz.

A KFLOP User C Program can be used to enable and disable a PWM generator in a way that one pulse is output only every N PWM cycles.  PWM gernerator #1 is sacrificed to generate a fixed long PWM pulse that the C Program can monitor to count cycles as well as determine when the next PWM cycle for all the PWM generators will begin.

#include "KMotionDef.h"

void ServiceHobbyPWM(void);

int ncycles, v1, v2;

main()
{
	int LowClocks, scaler=150;
	float PWMPeriod, BaseFreq=16.6667e6, PulseGap=20e-3, SafetyTime=200e-6;
	// Set base PWM to be high for entire time less 200us

	LowClocks = SafetyTime * BaseFreq / scaler;
	PWMPeriod = 256.0*scaler/BaseFreq;
	ncycles = PulseGap/PWMPeriod;
	printf("PWM Period = %fus\n", PWMPeriod*1e6);
	printf("Low Clocks = %d\n", LowClocks);
	printf("Skip Cycles = %d\n", ncycles);

	SetBitDirection(26,1);  // define bit as an output
	ClearBit(26);
	SetBitDirection(27,1);  // define bit as an output
	ClearBit(27);
	SetBitDirection(28,1);  // define bit as an output
	ClearBit(28);

	FPGA(IO_PWMS_PRESCALE) = scaler;  	// divide clock by 256 (250Hz)
	FPGA(IO_PWMS) = 255-LowClocks;  	// Mostly high pulse
	FPGA(IO_PWMS+1) = 1;  			// Enable
	ClearBit(26);

	v1 =  800e-6 * BaseFreq / scaler;  // set Pulse time
	v2 = 1700e-6 * BaseFreq / scaler;  // set Pulse time

	printf("PWM settings v1 = %d v2 = %d\n", v1,v2);

	for (;;)
	{
		ServiceHobbyPWM();
	}
}


void ServiceHobbyPWM(void)
{
	static int i=0;
	static WaitLevel=0;

	if (!WaitLevel) // waiting for low?
	{
		if (!ReadBit(26)) // yes is it low?
		{
			WaitLevel=1;  // yes, change state
			if (++i == ncycles)  // count mostly high pulses, special cycle?
			{
				FPGA(IO_PWMS+2) = v1; 	// Pulse size
				FPGA(IO_PWMS+3) = 1;	// Enable
				FPGA(IO_PWMS+4) = v2; 	// Pulse size
				FPGA(IO_PWMS+5) = 1;	// Enable
				i=0;
			}
			else
			{
				FPGA(IO_PWMS+3) = 0;   // Disable
				FPGA(IO_PWMS+5) = 0;   // Disable
			}
		}
	}
	else
	{
		if (ReadBit(26)) // no, waiting for high, is it high?
		{
			WaitLevel=0; // yes, change state
		}
	}
}

The code above prints this:

PWM Period = 2303.995425us
Low Clocks = 22
Skip Cycles = 8
PWM settings v1 = 88 v2 = 188

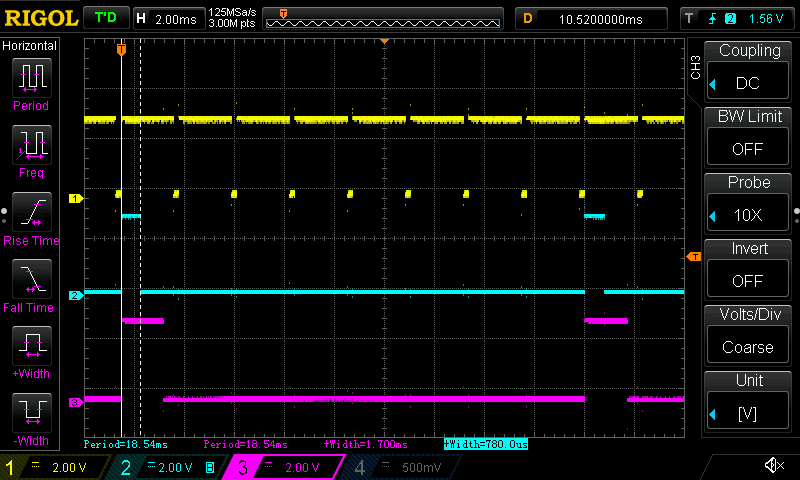

It generates the timing shown below.  Note the yellow trace is the reference PWM used by the C Program to count the cycles.  Two PWM pulses are emitted every 8 cycles.  The cyan trace shows a pulse width of 780us (specified in the program to be 800us) with a period of 18.5ms.  The magenta trace shows a pulse width of 1.7ms (specified in the program to be 1700us) with a period of 18.5ms.
