KMotionCNC Screen Editor

From Dynomotion

Jump to: navigation, search



Features include:

  • Show/Hide Controls
  • Change Size and Position of Controls
  • Change Label/Button Text
  • International Character Support
  • Change Font/Text Size
  • Bitmap Buttons and Labels
  • JPG, BMP, PNG Bitmaps
  • Toggle Bitmap Labels (LEDs)
  • Customizable Keyboard Hotkeys
  • Customizable Button Tool Tips
  • Programmable DRO (Digital Read Output) Labels
  • Custom User Entry Controls

The 6-axes default screen is changed to a 5-axes screen by deleting the z-axis. We start by installing KMotion 4.34b or later. Note that if you don’t already have Dot Net version 4.62 or Visual Studio 2015 libraries installed, you will be prompted to load those. Create desktop icons for KMotion, KMotionCNC and KMotionCNC Screen Editor. Run KMotion and observe the default 3-axes resizable screen.

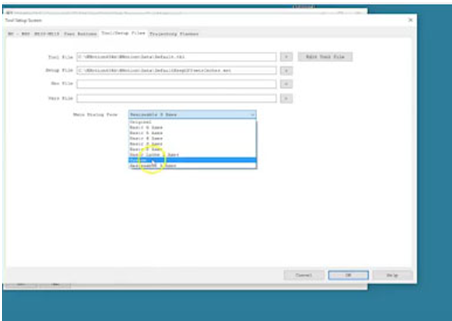

Close the G Viewer window and change the dialog face to Default Custom Screen with no screen script specified. (Tool Setup):


Now run the KMotionCNC Screen Editor. It automatically syncs to KMotionCNC’s controls and they are graphically displayed.

This graphical representation allows you to select which controls you want to modify.

Notice we can select a control and immediately hide or show it over at KMotionCNC. The controls can be moved or resized. There is also unlimited undo/redo. Multiple controls can be selected by dragging the mouse over the graphical display. Click SHIFT to add more controls, or CTRL to remove from the selection.


  • Select multiple controls for hiding and moving.
  • Change main dialog screen dimensions.
  • Change label text. Push SET key and KMotion CNC screen updates the text.
  • Increase the size of the controls.

The screen editor features international text support. Note that only certain fonts are capable of displaying international text. In our example, we selected Arial.

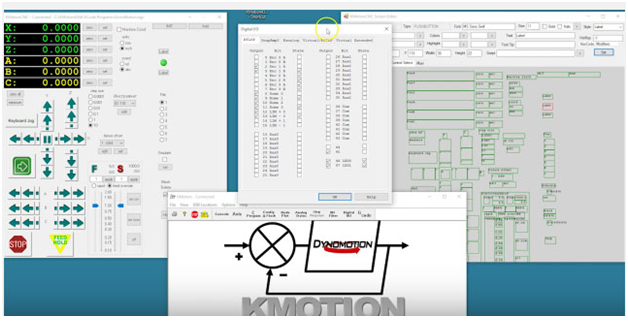

Labels can show or toggle bitmaps based on an IO bit. As an example, we first we select bitmap 1, then bitmap 2. Increase the size of the label, so the bitmap shows properly. Then assign an IO bit number that will control the bitmap displayed. Notice the bitmap turns green, because the bit is currently on. Open KMotion and look at the state of IO bit #46 and see that it is on. Toggling the bit affects the bitmap on the screen:


Users can configure push buttons for text, font, size, color, and tool tip. Select two sample labels and change them to type: button. Select both buttons and modify their fonts as well as their size. Four colors are available for text and background, each in normal and depressed button state. You can then change the name of each button individually, one to say “On” and the other“Off”. You can assign tool tips to each of the buttons, so when the operator hovers over the buttons, they will be prompted with a tool tip notification.

Buttons can be assigned to perform actions. Select a script that can either be a screen script or an action. We select an action type to set bit 46 to 1. Notice that this is the script that indicated that. For the other button, we select an action which sets bit 46 to 0. Now pushing the buttons will perform these actions. Save your new screen as a screen script file. Screen script is under the KMotionCNC directory and the sub-directory“Screens”. Configure KMotionCNC to use this new screen at every new startup.Notice that tool setup screen can be accessed by right-mouse clicking on the KMotionCNC title (in “Tools/Setup files”). Select the screen you just created.

Some more advanced features include input fields, C program actions, label DROs. Load the addition example in the screen editor. Example contains two user input controls and one DRO label control. The input edit controls are associated with KFLOP persist variables 160 and 161. The DRO label is associated with KFLOP persist variable 162. The Add button is configured for screen script action to run a C program in KFLOP. The C program is contained in the file “Add.c”. Test it by entering two values and pushing the Add button. Now open KMotion and look at the simple C code that is behind the function. (Open the file “Add.c”).

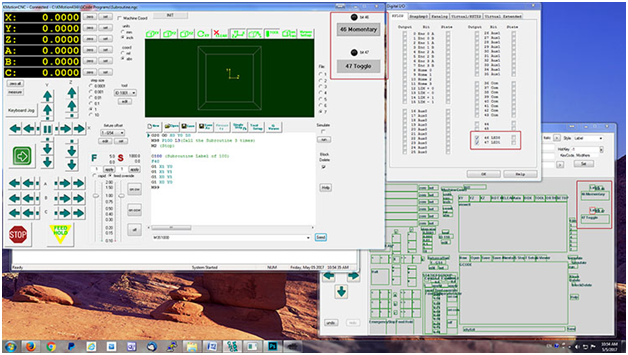

Momentary and Toggle button types in KMotion CNC Screen Editor

Start KMotion CNC Screen Editor, and click on the “Main” tab, then on “Read Script” and choose the file named MomentaryToggle.scr

You will see two buttons, a Momentary button assigned to bit46 and a Toggle button assigned to bit 47. You will also see two labels to display the status of bits 46 and 47 as LED bitmaps. We also have KMotion displaying the status of bits 46 and 47.


Clicking the Momentary button activates the bit; releasing it,deactivates it. Clicking the Toggle button once sets the bit; clicking it again releases it.

Instantaneous Feed Rate Display

Normally the feed rate indication in KMotionCNC shows average feed rate over 100ms, assuming straight line motion. Here we use a C program to calculate a more instantaneous rate and display it on the KMotionCNC screen using the KMotionCNC screen editor. Here the C program samples two positions and times, computes the delta position and the delta time, formats it to a string and displays it onto DRO label 162 in KMotionCNC and it performs this action roughly every one ½ seconds. Here is the screen script for the screen shown on the left, we’ve added a type DRO label in the screen editor, edited colors and it is connected to persist variable 162. This job consist of a rapid helix bore at a rate of about 6 revolutions per second. It shows the instant feed rate being more correct.

There is a newer example which also displays the feed rate as a vertical bar graph.  See:

ShowInstantFeedRate3AxisBar.scr and related C Program ShowInstantVelocityDROBar.c

Split/Full/Hidden GViewer Display on Main Dialog Face

KMotionCNC Screen Editor supports changing main screen style. New Boolean Screen Script “Main:” Options: "Caption:" "MaxBox:" "MinBox:" "ResizeFrame:" "Maximize:"

Maximized Captionless KMotionCNC Screens

New option in KMotionCNC Screen Editor V4.34e allows screens to be maximized to full screen and with or without Window Frame/Title. New options in Screen Editor: turn minimum box on or off, maximum box on or off, resizing frame on or off. Caption on top can be present or absent.

Available viewing options (three buttons on the top-right hand side of the screen: “Split”: Split screen mode, “View”: G Code Viewer or “Code”: G Code.

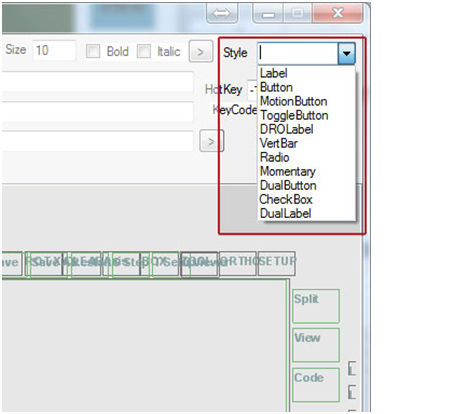

Control styles

Available style options:
  • Label
    Can be text or bitmap. The background is determined by the main dialog background.
  • Button
    Buttons can have all 4 options (foreground and background colors in on- and off-state) or they can also be bitmaps. Labels can load actions/scripts when the main screen is loaded.
  • MotionButton
    Motion buttons are strictly for jog button use only.
  • ToggleButton
    See description above and video.
  • DROLabel
    (Digital Read Out) runs a program in KFLOP, e.g. reads two edit cells in the “Add” example and passes back the result. X, Y, and Z are other examples of DRO labels.
  • VertBar
    Plots a vertical graph from 0 to 100% and is read by KFLOP like DRO labels. See also the Instant Feed Rate Display video.
  • Radio button
  • Momentary button
    See description above and video:
  • DualButton
    See description above and video:
  • Checkbox
  • DualLabel
    F for feed rate and S for spindle are example of dual labels. They display the state (one or another). They are fixed and cannot be edited.
Control attributes

  • Select ID
    Defines the name of the control on the screen.
  • Type
    Defines the type of control, e.g.: CONTROL, PUSHBUTTON, COMBOBOX.
  • Font
    Set the font type, size and normal, bold, or italic.
  • BitmapFile1, BitMapFile2
    Select a bitmap image (.bmp, .gif or .png) for your buttons. BitMapFile1 will show the selected file when the button is in normal state, BitMapFile2 when the button pressed.
  • Colors
    Select two colors for on- and off-state (text).
  • Highlight
    Select two colors for on- and off-state (background).
  • Tool Tip
    Compose text to describe the button action. This text will be visible when the user hovers over the button.
  • HotKey
    Assigns a keyboard key to perform an action. This field is by default set to “-1”. For example, select a control like “mm” and type “CTRL M” or select “in” and type “CTRL I” and click “Set”. The “x” button next to the field will restore the value back to “-1”.
  • Var
    Numeric variable attribute. Assigning a number toggles the corresponding bit in KFLOP (from 0 to 2047).
  • X, Y
    Changes the horizontal and vertical position of the control.
  • Width, Height
    Changes the size of the control.

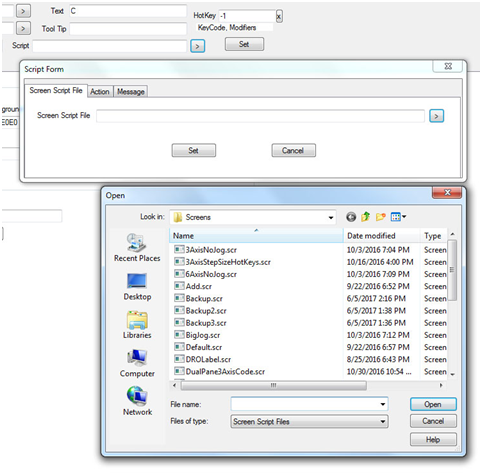

  • Script
    Using this field, the user has three options:

a) Selecting a screen script file from the library:

b) Selecting an Action:
c) Selecting a Windows Message:
  • Show/Hide
    Select a control and immediately show or hide it.
  • Move/Resize
    Move the position of the control or change its size.
  • Undo/Redo
    An unlimited number of undoes and redoes is available.
  • Copy/Paste
    The user can edit all three screens (Split, View, and Code) by clicking “Copy” after making an edit such as moving a button, then loading the next screen, clicking outside the editable area and selecting “Paste”.

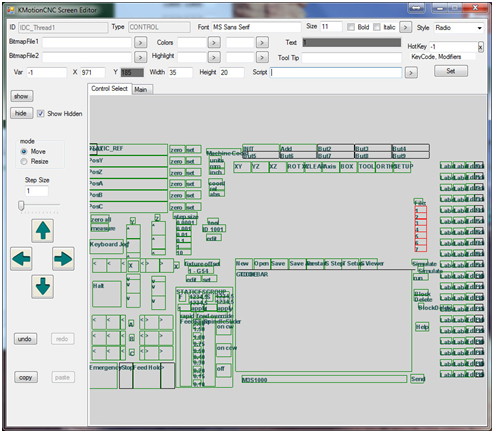

  • General
    When selecting multiple controls, white fields are shown when all settings are the same, and grey fields when the values are different. In the example below note that we have selected the radio buttons labeled 1 through 7. While they all share the same font type, size, width and horizontal (x) position etc., “text” and “y-position” are grayed-out, since the radio buttons’ text labels and their vertical position are unique to each field. To override this, just click into the grayed-out field(s) and start editing.
Main Window attributes

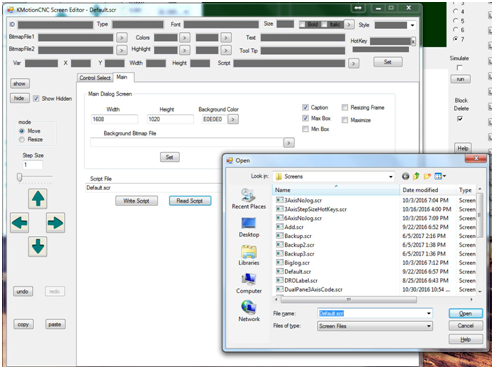

  • Main Dialog Screen
    Defines the look and feel as well as the size of your KMotionCNC screen. You can choose a background color, or select a bitmap file as your background. Choose the size of the window, or whether the window should be resizable or fixed and so on.

  • Script File
    Select a screen script file from the library or set an action. A screen script file defines the look of a page. You can assign an action to a button to load a screen script file.
Bitmap types, Alpha, and locations

The following bitmap types are supported: .bmp, .gif, and.png. Out of these, only the png file type supports alpha channels, i.e. background transparency.
Images are stored in the following “Resources” location:
\KMotion434i\PC VC Examples\KMotionCNC\res

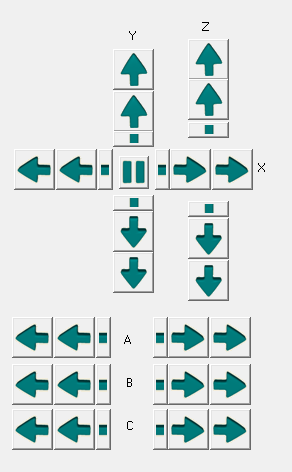

Motion Buttons (for Jogging)

Special Buttons for Jogging exist with Style MotionButton. Although these buttons can be customized with regard to Bitmap images, size, positions, Font, ToolTips, Show/Hide, and Hotkeys they have fixed functionality for the 6 GCode Axes XYZABC.  They support momentary Hotkey and combined mouse operation with the ability to have multiple Hotkeys pushed simultaneously and dynamically change speed using the SHIFT key.  Additional MotionButtons can not be currently added.


The Jog Buttons are grouped into 6 buttons per axis.  3 of the 6 buttons are used for moving one direction and 3 for the other direction.  The 3 buttons correspond to Stepping a fixed distance, Jogging slow, and Jogging Fast.   The Resource IDs corresponding to each axis are:

X + = IDC_RightStep, IDC_Right, IDC_Right2

X - = IDC_LeftStep, IDC_Left, IDC_Left2


Y + = IDC_UpStep, IDC_Up, IDC_Up2

Y - = IDC_DownStep, IDC_Down, IDC_Down2


Z + = IDC_ZplusStep, IDC_Zplus, IDC_Zplus2

Z - = IDC_ZminusStep, IDC_Zminus, IDC_Zminus2


A + = IDC_AplusStep, IDC_Aplus, IDC_Aplus2

A - = IDC_AminusStep, IDC_Aminus, IDC_Aminus2

B + = IDC_BplusStep, IDC_Bplus, IDC_Bplus2

B - = IDC_BminusStep, IDC_Bminus, IDC_Bminus2

C + = IDC_CplusStep, IDC_Cplus, IDC_Cplus2

C - = IDC_CminusStep, IDC_Cminus, IDC_Cminus2

Note the HotKeys for all 3 Motion Buttons for each axis/direction must be set to the same value. This is because the same HotKey combined with CTRL and SHIFT alter the behavior to Step and Fast respectively.  If not all 3 buttons are desired for the screen the others may be hidden but should be all defined to the same HotKey for the HotKey functionality to work correctly.  Furthermore no other buttons should be defined with the same HotKeys.  The Screen Editor has a special feature to test for Duplicate HotKey assignments called "check dup hotkey"

There is also one associated IDC_StopStep button which will stop any Step Movement currently in progress.

Performing an action Immediately within Screen Script

Normally when processing a Screen Script, the "Script" Parameter defines for a Push Button Control what should happen when the Push Button is pushed. However when a "Script" Parameter is specified for a static Label the Action will occur immediately after the Screen Script is processed.

For example: when loading a screen intended for Simulation we might want to have the Simulation mode automatically selected on. So the Script for the IDC_SimulateStatic Label might be set to check the simulate checkbox with:


Scaling an Entire Screen or Portion of a Screen

A new Screen Editor feature has been added to stretch/shrink a number of selected screen controls by a specified percentage.  The height and width of the controls can be stretched as with their XY positions.  The horizontal and vertical directions can be Stretched/Shrunk independently.  Scaling the Vertical direction will also scale any Font point settings.  The Width and Height of the entire dialog will also be scaled accordingly.

To Scale a Screen:

  1. Select the controls to be scaled - usually all controls (drag a box to select multiple controls)
  2. Select mode: Screen Scale
  3. Select the desired Size Change as a percentage 1-100% (ie 60% corresponds to a stretch/shrink factor of 1.6)
  4. Push Increase/Decrease Width button
  5. Push Increase/Decrease Height button

Note: it is best to scale in one step vs multiple steps as control widths and font sizes are integers and may have rounding after each step.

Note: any bitmap images will be unchanged and remain the same size.  They can be manually scaled with a graphics app if necessary.

If not in the current Version a Version with scaling added can be downloaded here (place in \KMotion\Release Directory):

KMotionCNC Screen Editor with Scaling

Screen Editor with Screen Scale of 60% and all controls selected:


Example Original Screen:


Example Scaled up 60%
