G Code Viewer Not Showing Toolpaths

Moderators: TomKerekes, dynomotion

Post Reply
DMSdesignco
Posts: 6
Joined: Sat Jul 28, 2018 1:09 am

G Code Viewer Not Showing Toolpaths

Post by DMSdesignco » Wed Feb 26, 2020 5:47 pm

Hello Tom,

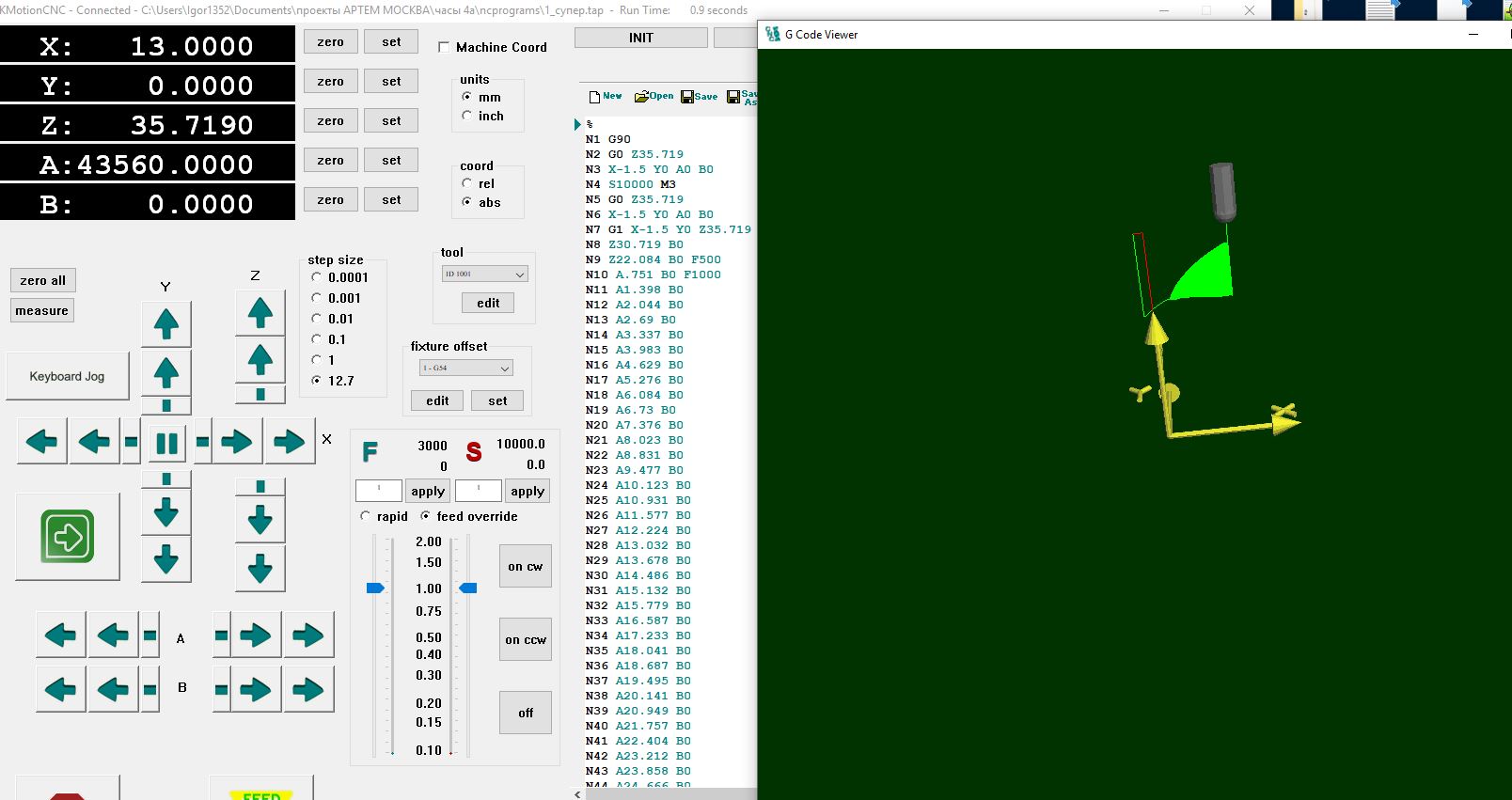

Although I have been using your products for years, I wanted to test a g-code program using the g-code viewer screen in KMotionCNC, but the toolpath doesn't display. The tool is moving, but no path. I'm sure I'm missing something obvious, but I can't find it.

Thank you,
David.

User avatar
TomKerekes
Posts: 987
Joined: Mon Dec 04, 2017 1:49 am

Re: G Code Viewer Not Showing Toolpaths

Post by TomKerekes » Wed Feb 26, 2020 6:35 pm

Hi David,

If you are using a Custom Screen the toolpath is displayed on the main screen GCode View control not the separate GCode Viewer Window.

If this is the case either add the GCode Viewer Control to your screen or switch to a non-custom dialog face.

Regards,

Tom Kerekes
Dynomotion, Inc.

DMSdesignco
Posts: 6
Joined: Sat Jul 28, 2018 1:09 am

Re: G Code Viewer Not Showing Toolpaths

Post by DMSdesignco » Wed Feb 26, 2020 7:46 pm

Thanks Tom,

It is a custom screen, so I will make the change you suggested.
