i got no G viewer

[TomKerekes]

am i needing to put your .exe in that?

no


You need to use the Screen Editor on your Screen.

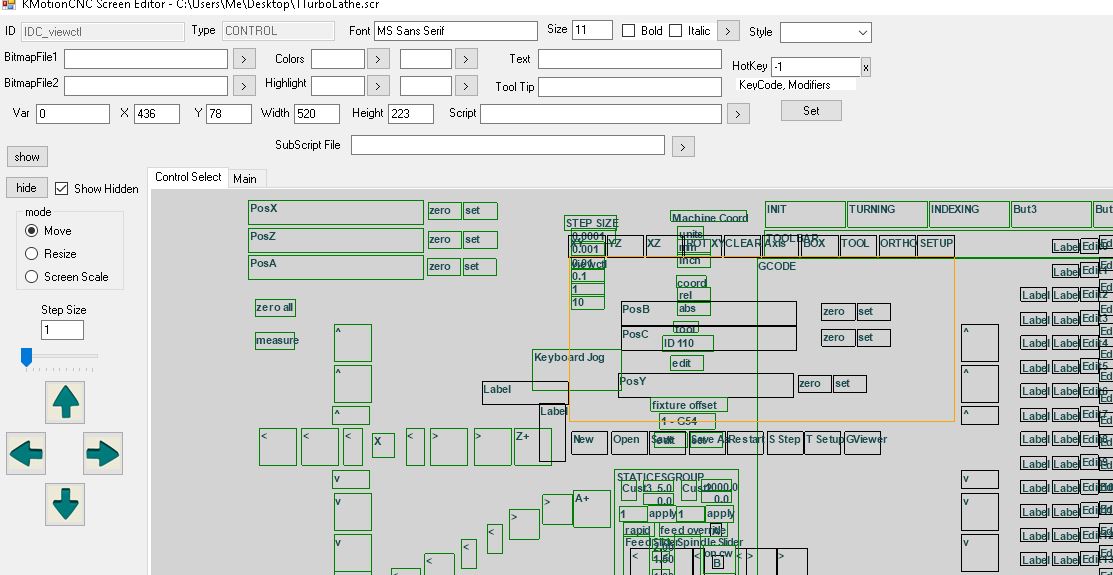

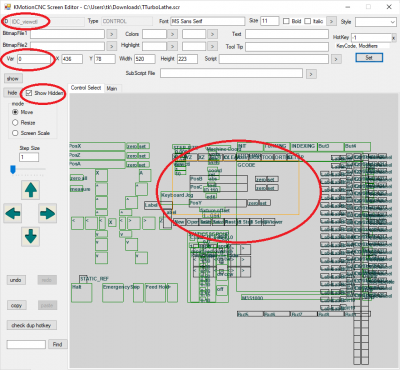

Use Show Hidden so you can see the GViewer Control.

Select the GViewer Control

Change the Var Parameter from -1 to 0

Click Set

Save the Screen File

Restart KMotionCNC to re-load the Screen

also i noticed my program is backwards

I think you want the Option | Tool Setup | Trajectory Planner | Lathe Option | X Positive Front

[turbothis]

great instructions!
1 screen viewer made no difference.
2 the "X positive front" button has no change too.

i re-downloaded the newest version and input my data folder for settings to try that
just odd things those two

even with the "simple 2 axis lathe" screen the X positive front makes no change

[TomKerekes]

screen viewer made no difference.

Please post the Screen file with the change.

the "X positive front" button has no change too

You don't see the X axis reversed as shown here? Note you must Show Front View XZ for the GViewer to update. Note also you must select a Tool Image with the appropriate orientation.

[turbothis]

sorry i should have posted it after the change
ill look into the tool

[TomKerekes]

The IDC_viewctrl Var is still set to -1 not 0

[turbothis]

man, what is going on. lol
mine shows it is 0
thats what it says when i open it up and no joy

[TomKerekes]

This file has it 0. The previous has -1. What changed? Which file is KMotionCNC selected to use?

[turbothis]

i am using the last one in the picture i posted. still no cut path shown

[turbothis]

holy cow i am back here again!
took off the DC servo for the spindle.
got the vfd running just fine on the old motor
i got no g code viewer and the radius cut is backwards. i dont recall what i did to fix this or even why it is happening again
i can not edit any text in the G code viewing window on KmotionCNC too.

[turbothis]

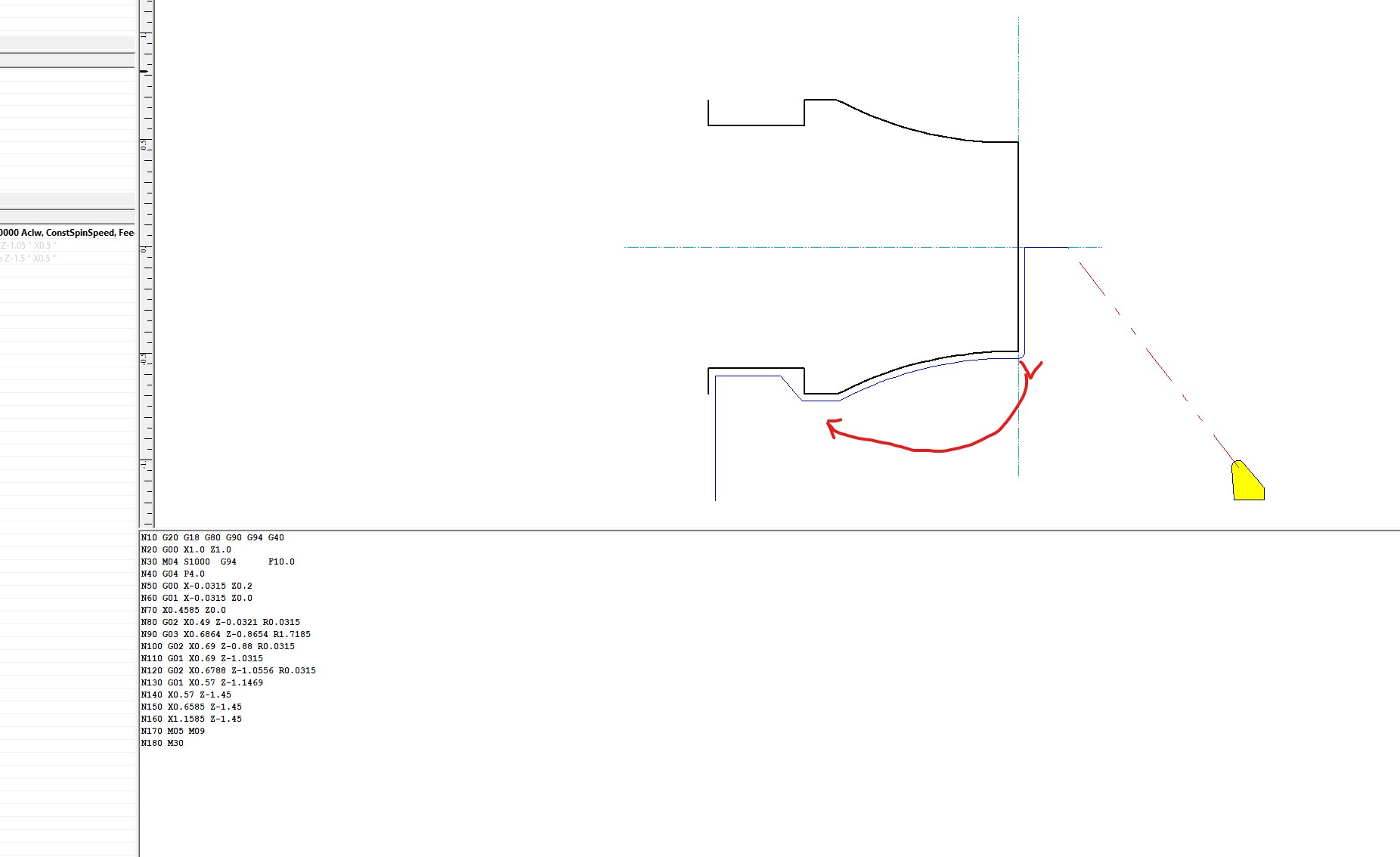

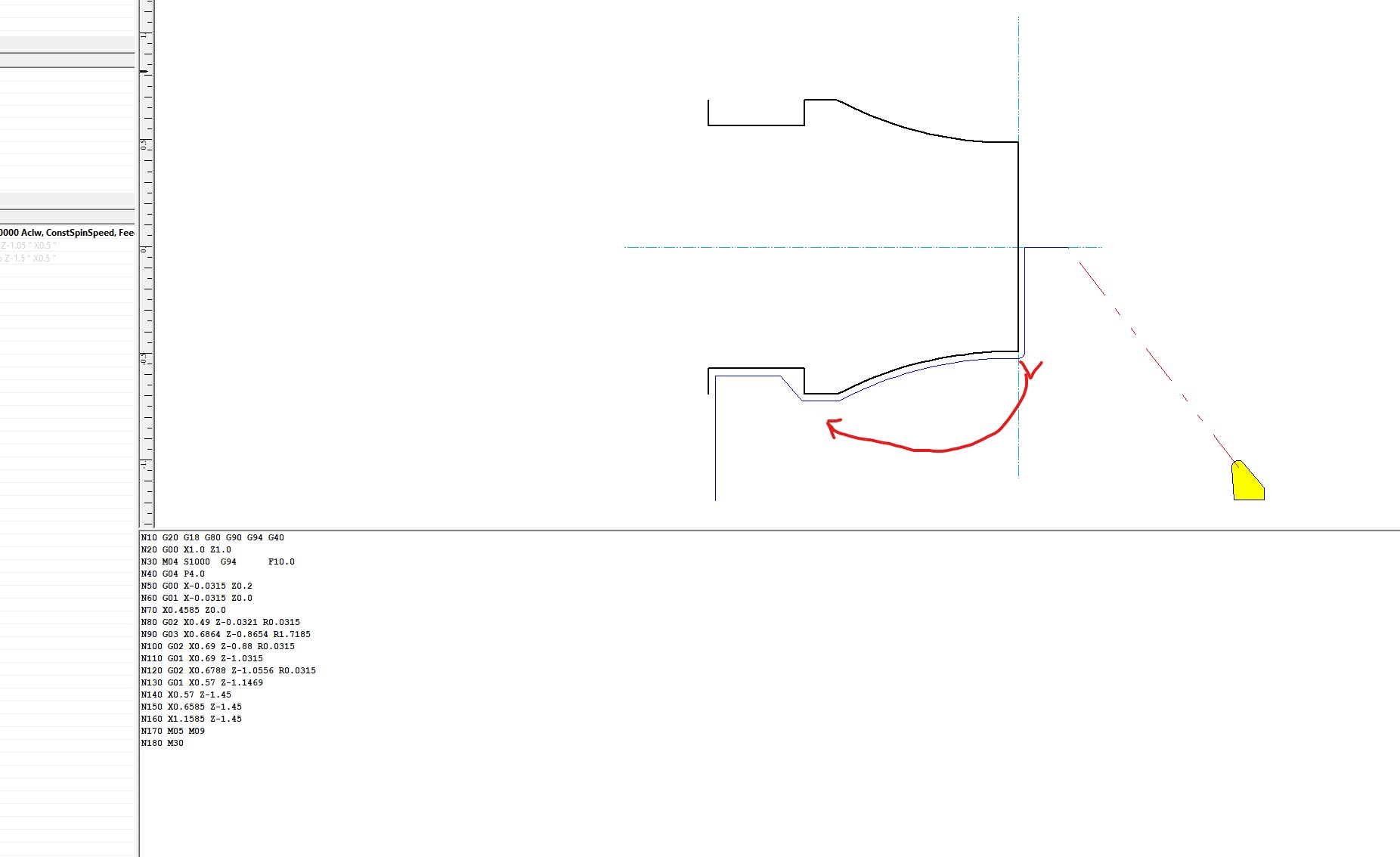

G code and CAM preview

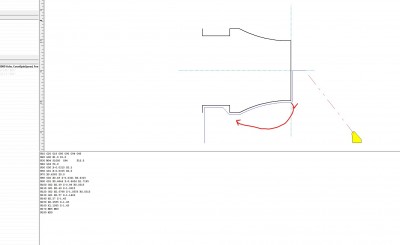

the red line is what the machine tries to cut
